About this item

• Accuracy Measuring: With an impressive 20,000 counts resolution, our multimeter ensures exceptional accuracy for all your measurement needs, suitable for professional in mining, photovoltaic systems, and solar panels.

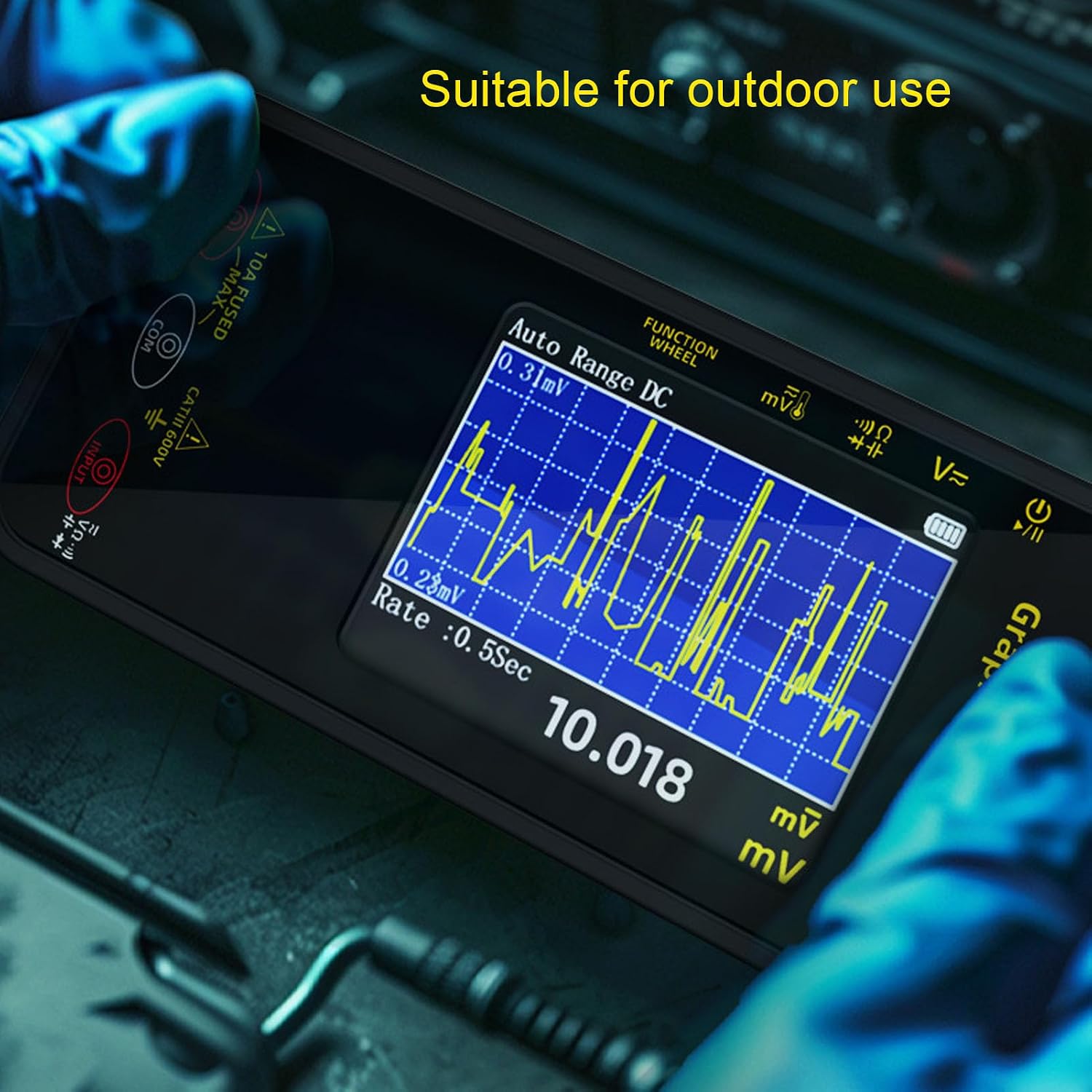

• Innovative Data Logging: The smart digital multimeter features a data logging mode that charts voltage changes over time, allowing you to record up to 5 measurements with 10,000 data points each for thorough analysis.

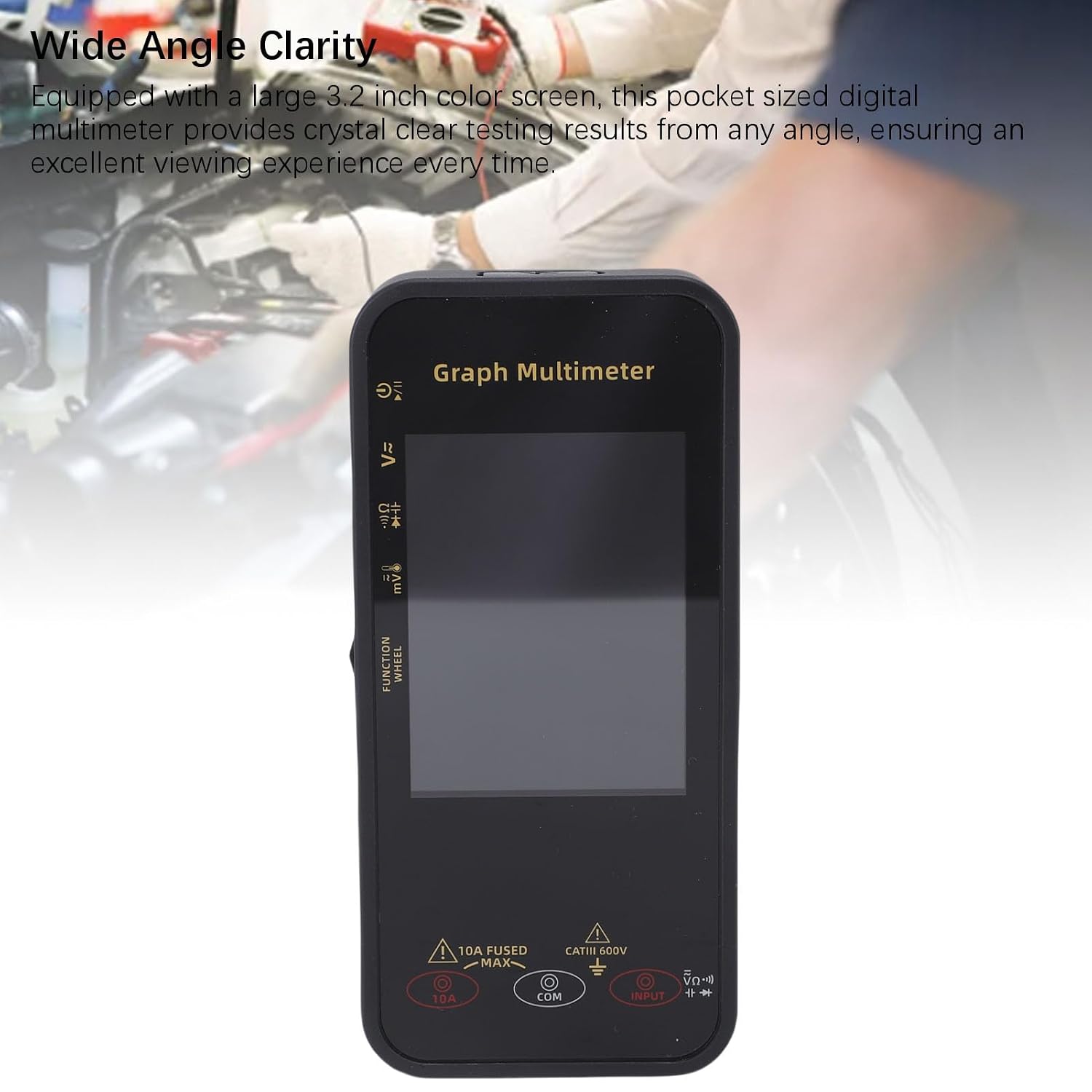

• Wide Angle Clarity: Equipped with a large 3.2 inch color screen, this pocket sized digital multimeter provides crystal clear testing results from any angle, ensuring an viewing experience every time.
• Comprehensive Measurement Capabilities: Our photovoltaic multimeter measures capacitance, diodes, temperature, resistor, and continuity, offering multi functionality to meet diverse electrical testing needs.

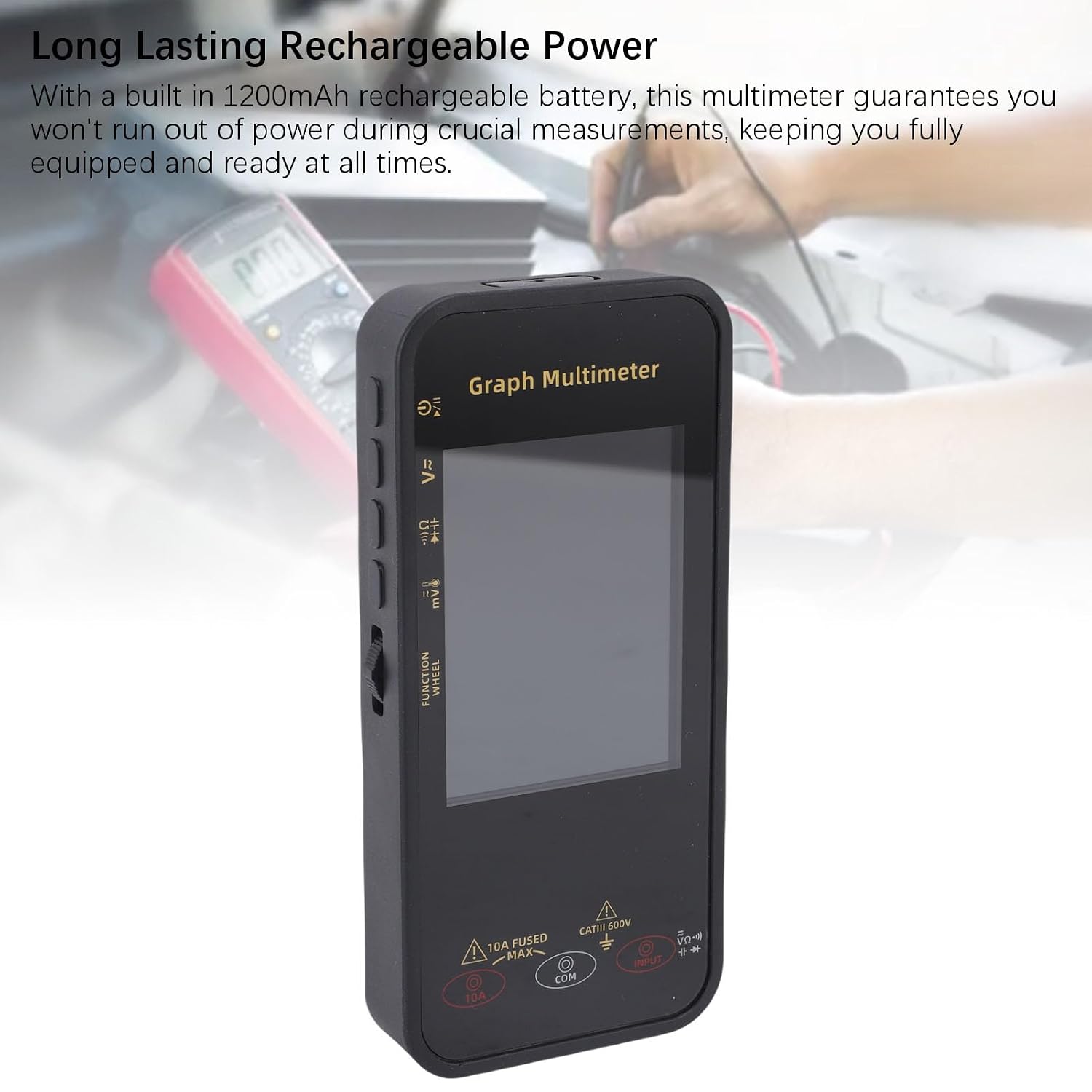

• Long Lasting Rechargeable Power: With a built in 1200mAh rechargeable battery, this multimeter guarantees you won't run out of power during crucial measurements, keeping you fully equipped and ready at all times.


  Product information

  Item details

  Brand Name	NDNCZDHC
  Model	NDNCZDHCs9u1mbpcga
  Number of Items	1
  Manufacturer	NDNCZDHC
  Included Components	no
  Part Number	NDNCZDHCs9u1mbpcga

  Product Description

  Item Type: Smart Multimeter
  Material: ABS
  Power Supply: Built in 1200mAh lithium ion battery (Built in)
  Function: Auto range, full range overload protection
  Auto Mode: Automatically identify AC voltage, DC voltage, resistor, on off.

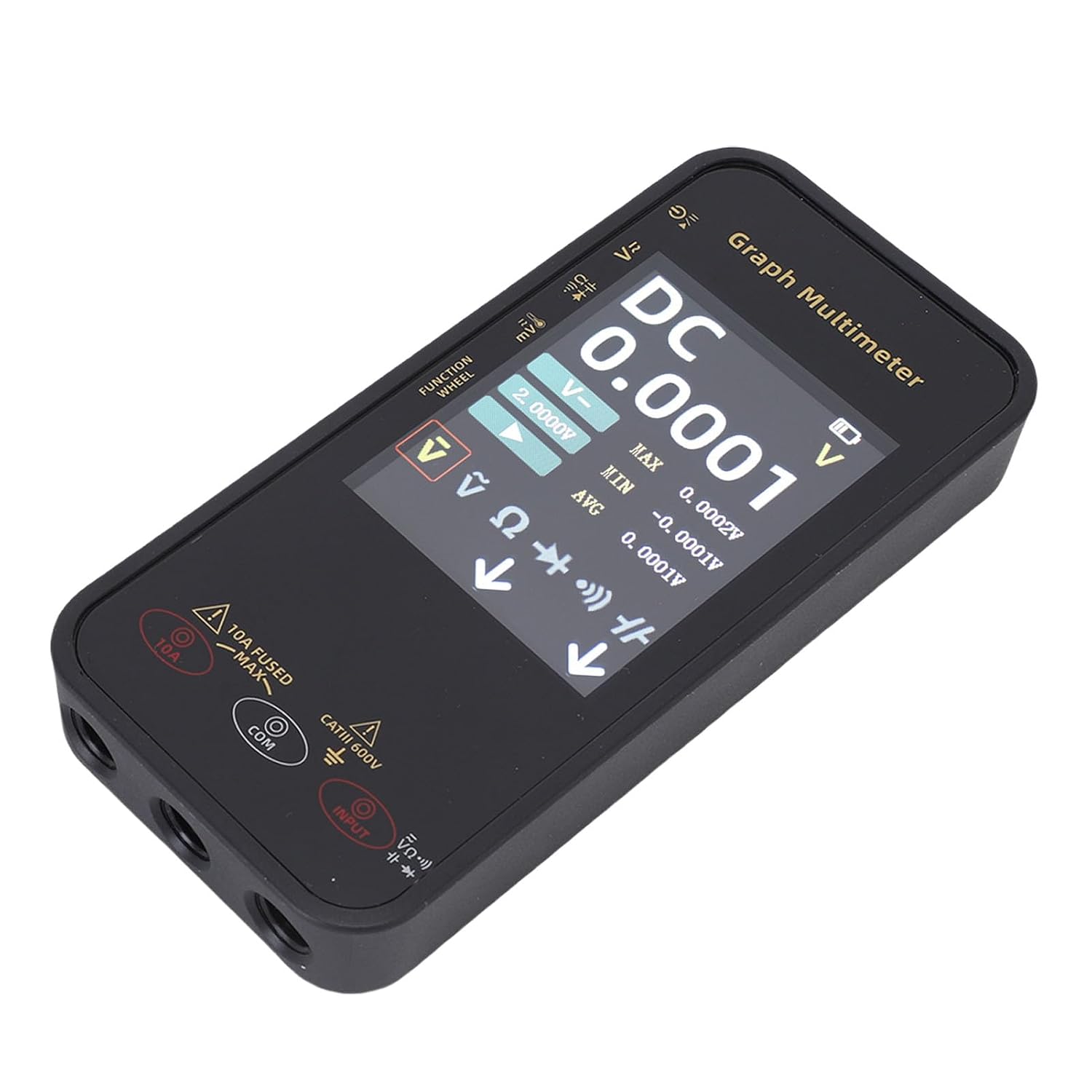

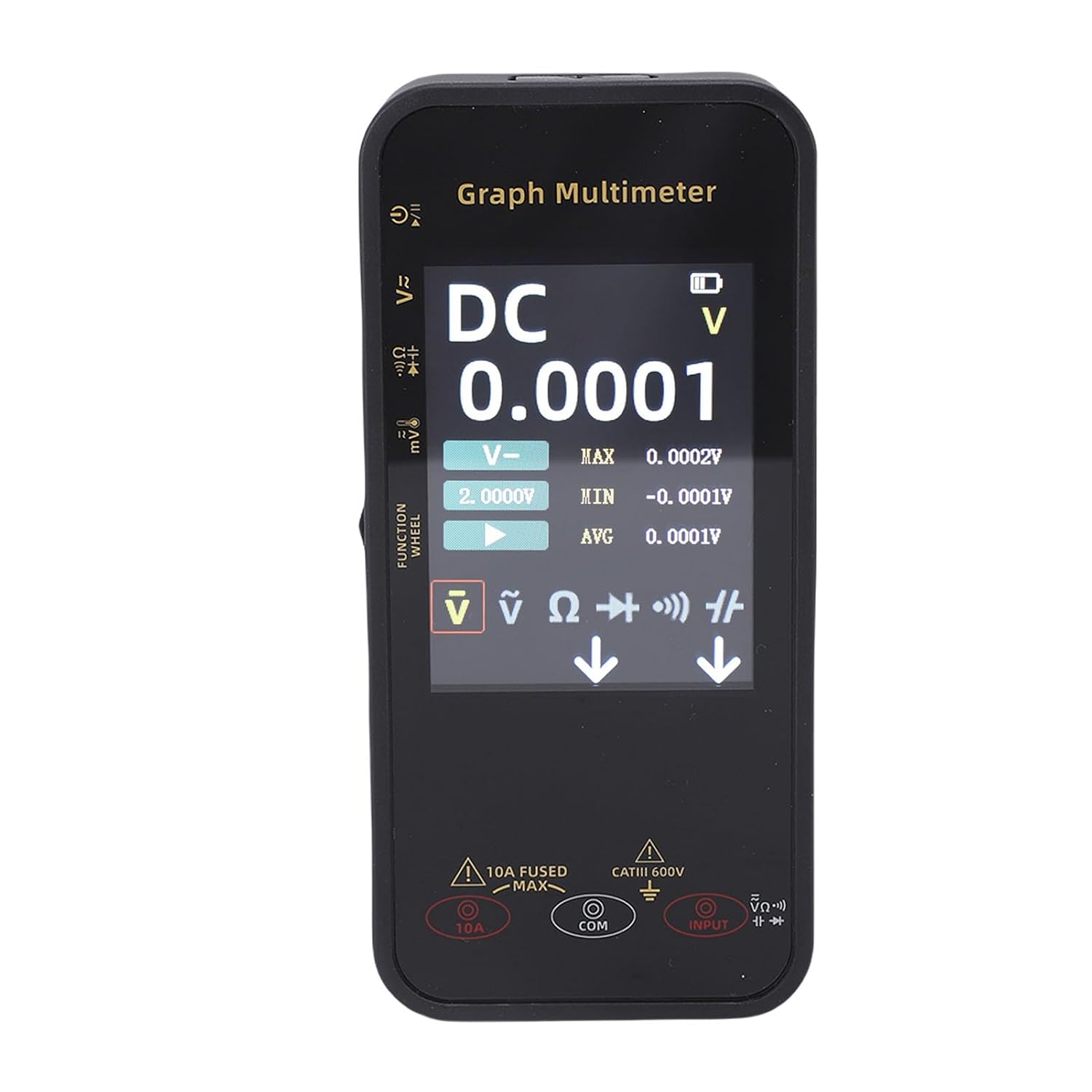

  Display: 3.2 inch TFTcolor screen
  Pixels: 320x240
  Auto Shutdown Time: 1 minute, 10 minutes, 30 minutes, 60 minutes, or off (no automatic shutdown time limit).
  Temperature Unit: Celsius, Fahrenheit.
  Backlit Brightness: 30%, 50%, 80%, or 100 percent of screen brightness.
  Working Mode: Can be set to normal mode and record mode(graphic mode), only DC, AC, mVDC, mVAC four measurement situations support data recording. Other modes only support display data, do not support recording.
  Record Types: Maximum value, average value, minimum value, respectively represent the data saved at each recording point as the maximum value, average value, minimum value of all data in that interval.
  Record Interval: Data sampling storage interval.
  Formatting: Delete stored record data. (This operation will clear all stored data)
  View Recorded Data: Use a USB cable to connect the device to a computer, a U disk will appear on the computer, the recorded data is stored in the U disk in CSV file format, open it to view.
  Working Environment: 0-40 degrees Celsius ＜75%RH
  Storage Environment: -20℃ to +60℃ ＜80%RH
  Operating Altitude: Maximum 2000M
  DC voltage (V):
  Range: 2.0000V
  Resolution: 0.0001V
  Accuracy: ± (0.1%+3)
  Range: 20.000V
  Resolution: 0.001V
  Accuracy: ± (0.1%+3)
  Range: 200.00V
  Resolution: 0.01V
  Accuracy: ± (0.5%+3)
  Range: 1000V
  Resolution: 0.1V
  Accuracy: ± (0.5%+3)
  DC voltage (mV):

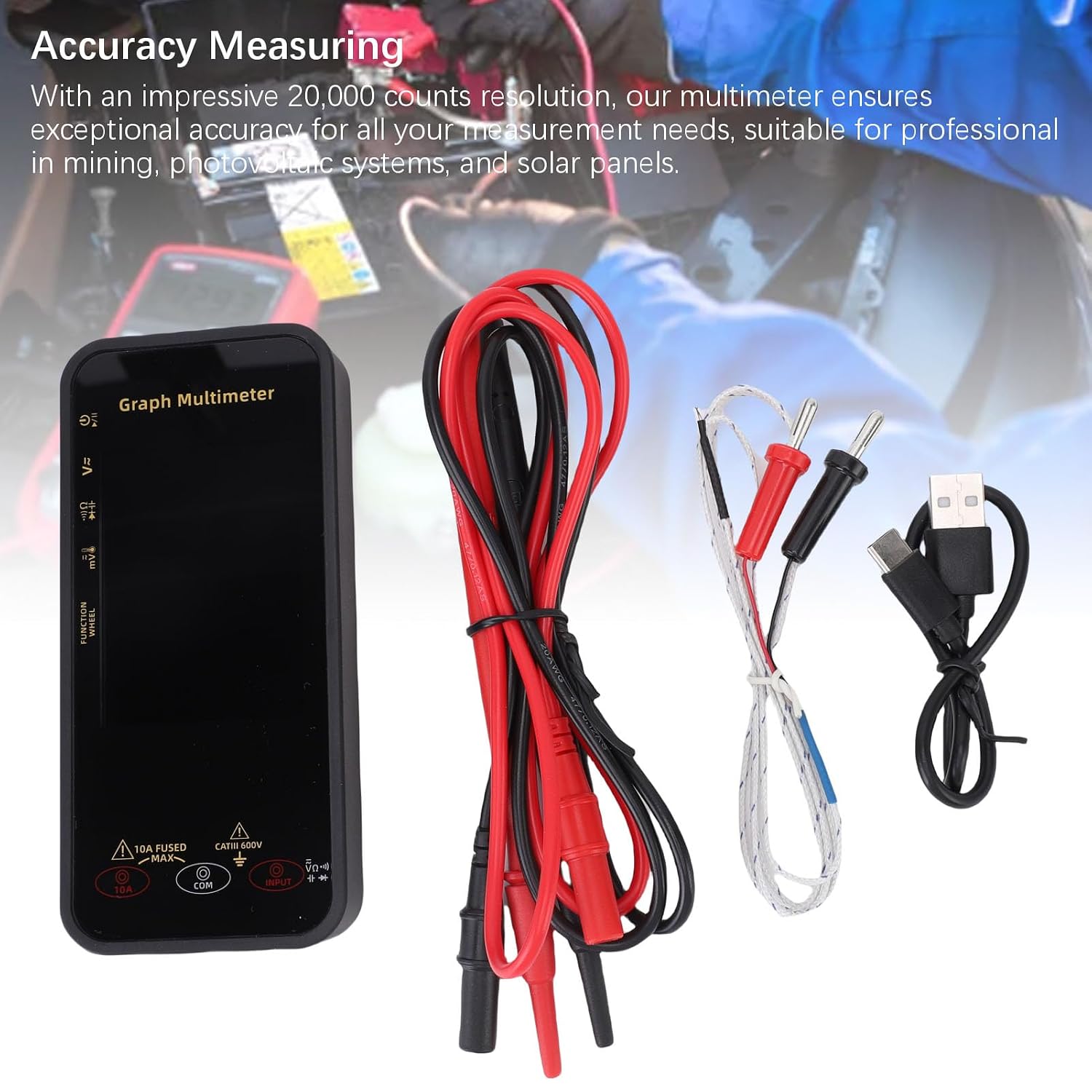

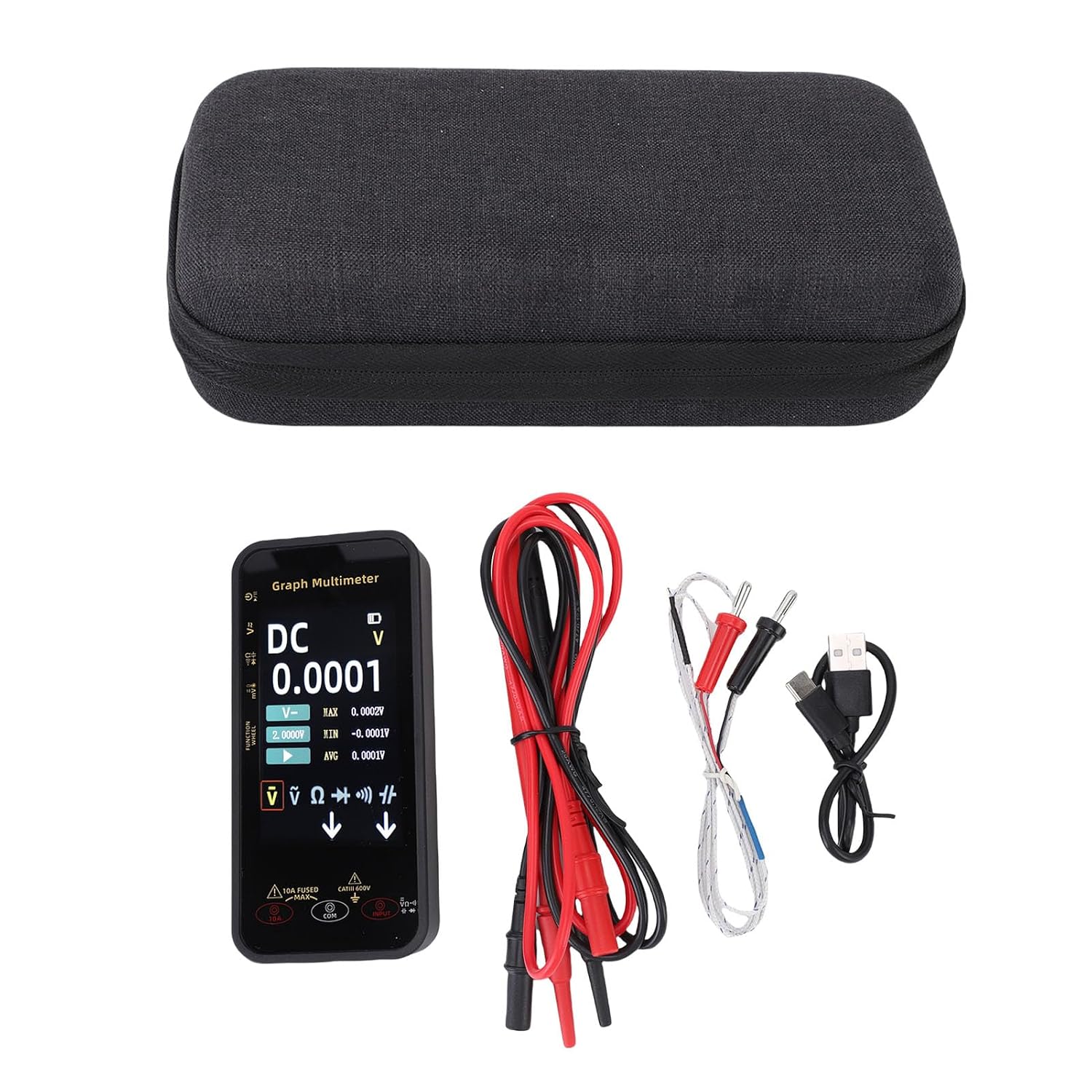

  Package List：
  1 x Multimeter
  1 x Charging Cable
  2 x Test Pen
  1 x Thermocouple
  1 x User Manual
  1 x Storage Bag
